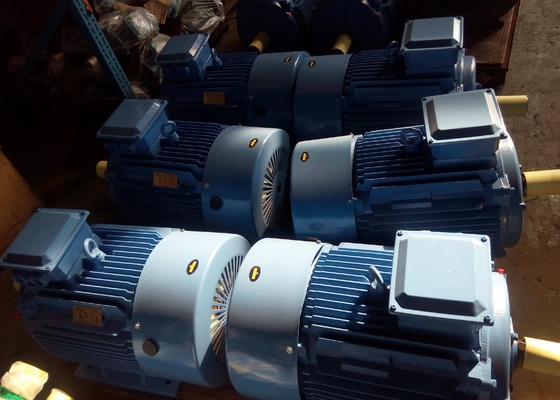

Inverter Duty 6 Pole 25KW Textile Motors Three Phase Induction Motor Speed Control

Large Image : Inverter Duty 6 Pole 25KW Textile Motors Three Phase Induction Motor Speed Control Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	FE3VP-H180

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

High Light:

low rpm electric motor

3 phase induction motors

Inverter Duty 6 Pole 25KW Textile Motors Three Phase Induction Motor Speed Control

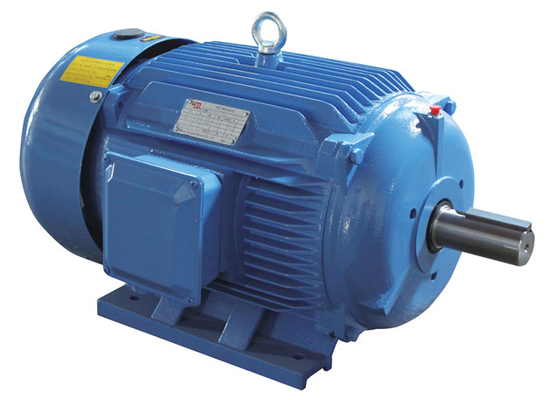

FE3VP inverter duty textile Motors in Industry (H 180 Cast Iron Frame)

Description:

FE3VP-H180 series motors are enclosed fan cooled which can be regreased during running and have the anti clogging ability of fiber. This series motors are suitable for the frequency control of the spinning machine and other textile machinery under the working conditions of dust and short fibers ,high temperature and humidity.

Its efficiency can reach IE3 standard which average efficiency is 2 % higher than FE2VP-H180.

Applications:

FE3VP-H180 series motors are suitable for the frequency control of the spinning machine and other textile machinery under the working conditions of dust and short fibers ,high temperature and humidity.

Ambient
Temperature range:	-15~40℃
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%

Standard Feature:
Standard	IEC
Efficiency Level	IE3
Phase	Three-phase
Frame Size	H180 cast iron frame
Protect Feature	Totally Enclosed
Output Range	15~25KW
Voltage	380V
Frequency	50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)
Poles	4,6
Protection Class	IP54
Insulation	F/B
Mounting	IMB3 or on your request
Duty	S1
Connection	△
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Technical Specification (380V/50HZ) Connection :△

Motor Type	Rated Power	Constant Torque	constant power	Torque	Temperature grade	Protection Class	Weight
	Rated Power	Constant Torque	constant power	Torque	Temperature grade	Protection Class	Weight
	KW	Hz	Hz	N.M		IP	kg
FE3VP 180M1-4	15	5-50	50-100	95.5	F	54	170
FE3VP 180M2-4	17	5-50	50-100	108.2	F	54	180
FE3VP 180M1-6	13	5-50	50-100	124.2	F	54	170
FE3VP 180M2-6	15	5-50	50-100	143.3	F	54	180
FE3VP 180L1-4	18.5	5-50	50-100	117.8	F	54	190
FE3VP 180L2-4	22	5-50	50-100	140	F	54	210
FE3VP 180L3-4	25	5-50	50-100	150	F	54	220
FE3VP 180L2-6	17	5-50	50-100	165.5	F	54	210

Mounting and Overall Dimensions(mm)

Frame Size	Mounting Dimensions (mm)									Overall Dimensions (mm)
Frame Size	A	B	C	D	E	F	G	H	K	AB	BB	AC	AD	HD	L
FE3VP 180M	279	241	121	48	110	14	42.5	180	4-￠15	349	300	375	280	420	670
FE3VP 180L	279	279	121	48	110	14	42.5	180	4-￠15	349	350	375	280	420	710
