Product Details:
Payment & Shipping Terms:
|
Efficiency Level: | IE1 | Frame Size: | H180 Cast Iron Frame |
---|---|---|---|
Output Range: | 13/6KW,15/7KW,17/9KW,18.5/11KW, 22/11KW | Poles: | 4/6 |
High Light: | low rpm electric motor,variable speed electric motor |

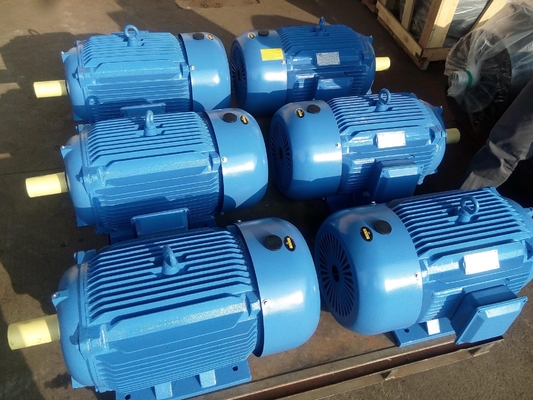

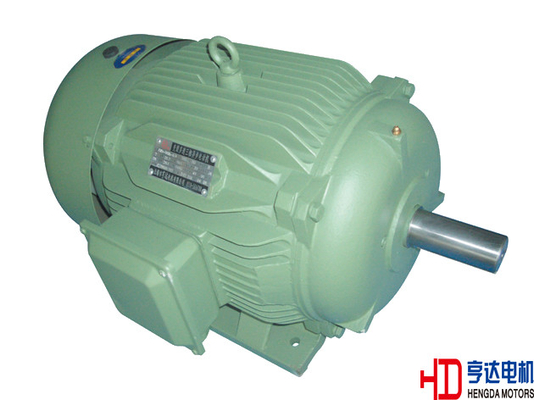

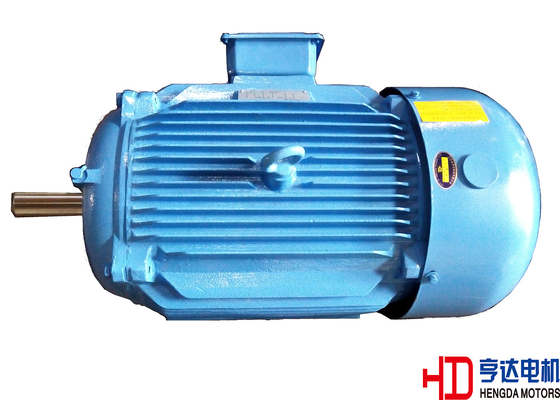

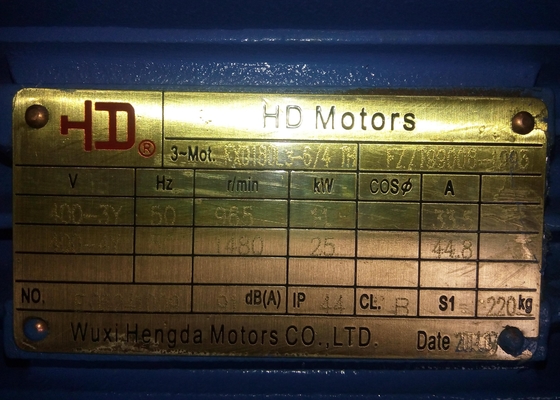

FXD2-H180 High Efficiency 380V Two Speed Electric Motor 22KW 11KW For Textile Industry
Description:
With high efficiency index, this series motor features good energy saving and the bearing regreasing can be done during running .It is mainly used for the spinning machine and other textile machines and can prevent itself from being blocked up by fibers.
Applications:
FXD2-180 series motors are suitable for textile industry,such as spinning machine .
Standard Feature: |
|
Standard |
IEC |
Phase |
Three-phase |
Protect Feature |
Totally Enclosed |
Voltage |
380V |
Frequency |
50HZ |
Protection Class |
IP54 |
Insulation |
F/B |
Connection |
3Y/4Y |
Thermometry |
Optional |
Certification |
CCC, CE,ISO9001 |
Special motors can be designed according to customers' requirements |
Technical Specification (380V/50HZ)
Motor Type | Rated Power | Current | Rated Speed | Power Factor | Efficiency | Locked Current | Locked Torque | Maximum Torque | Connection | Weight |
Rated Current | Rated Torque | Rated Torque | ||||||||
KW | A | r/min | cosΦ | η% | Ist/In | Tst/Tn | Tm/Tn | kg | ||
FXD2-180MO-4/6 | 13/6 | 24.7/20.6 | 1480/990 | 0.87/0.5 | 92/88.5 | 8/8.5 | 1.5/2.2 | 2/2.5 | 4Y/3Y | 170 |
FXD2-180M1-4/6 | 15/7 | 28.5/21 | 1480/990 | 0.87/0.55 | 92/88.5 | 8/8.5 | 1.5/2.2 | 2/2.5 | 180 | |
FXD2-180M2-4/6 | 17/9 | 32.1/28.1 | 1480/990 | 0.87/0.55 | 92/88.5 | 8/8.5 | 1.5/2.2 | 1.8/2.5 | 190 | |

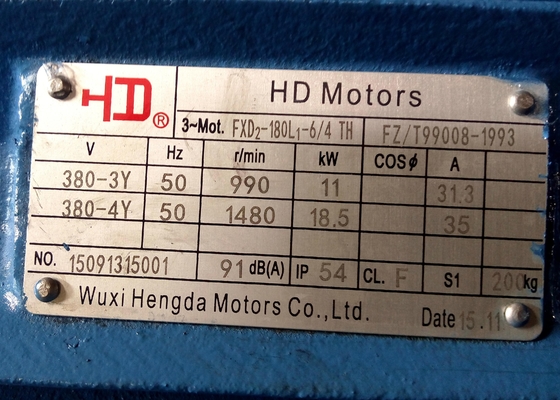

FXD2-180L1-4/6 | 18.5/11 | 35/31.3 | 1480/990 | 0.87/0.6 | 92.5/89 | 8/8.5 | 1.5/2.2 | 1.8/2.5 | 200 | |
FXD2-180L2-4/6 | 22/11 | 41.6/31.3 | 1480/990 | 0.87/0.6 | 92.5/89 | 8/8.5 | 1.5/2.2 | 1.8/2.5 | 210 |
Mounting and Overall Dimensions(mm)
Frame Size |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
|||||||||||||
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
BB |
AC |
AD |
HD |
L |
|
FXD2-180M |
279 |
241 |
121 |
48 |
110 |
14 |
42.5 |
18 |
4-¢15 |
349 |
300 |
375 |
280 |
420 |
670 |
FXD2-180L |
279 |
279 |
121 |
48 |
110 |
14 |
42.5 |
18 |
4-¢15 |
349 |
350 |
375 |
280 |
420 |
710 |
