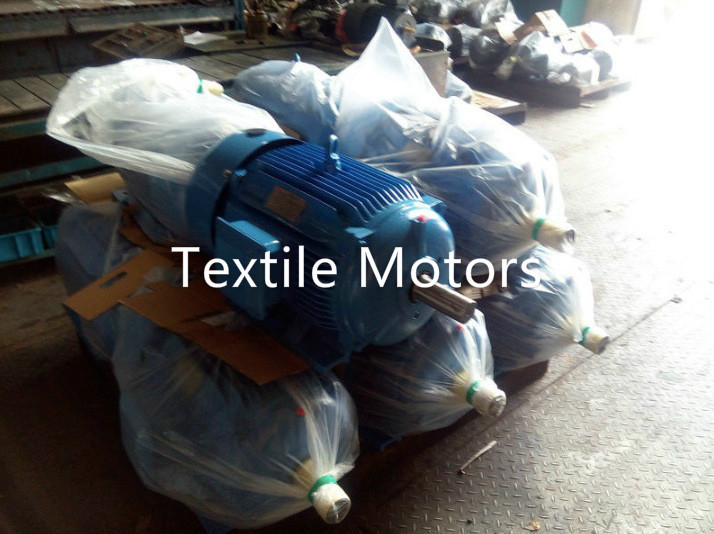

Waterproof Double Speed Textile Motors 10KW / 5KW , Totally Enclosed

Large Image : Waterproof Double Speed Textile Motors 10KW / 5KW , Totally Enclosed Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	JFO3 double speed

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

High Light:

low rpm electric motor

variable speed electric motor

Waterproof Double Speed Textile Motors 10KW / 5KW , Totally Enclosed

JFO3 double speed textile Motors in textile Industry (Cast Iron Frame)

Ambient
Temperature range:	-15~40℃
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%

Standard Feature:
Standard	IEC
Efficiency Level	IE1
Phase	Three-phase
Protect Feature	Totally Enclosed
Output Range	10/5KW ~22/11KW
Voltage	380V
Frequency	50HZ
Poles	4/6, 4/12
Protection Class	IP54
Insulation	F/B
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Technical Specification (380V/50HZ)

Motor Type	Rated Power	Current	Rated Speed	Power Factor	Efficiency	Locked Current	Locked Torque	Maximum Torque	Weight
	Rated Power	Current	Rated Speed	Power Factor	Efficiency	Rated Current	Rated Torque	Rated Torque	Weight
	KW	A	r/min	cosΦ	η%	Ist/In	Tst/Tn	Tm/Tn	kg
JF03-52-4/6	10/5	19.8/12.9	1460/960	0.87/0.74	88/80	7/6	1.7/0.85	2.2/1.7	160

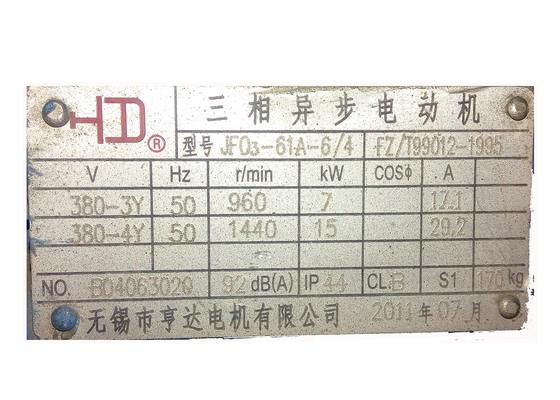

JF03-61A-4/6	15/7	29.2/17.1	1440/960	0.88/0.76	88/82	7/6	1.7/1.1	2.2/1.7	180
JF03-61B-4/6	17/9	33.3/21.4	1440/960	0.88/0.72	88/86	7/6	1.5/1.7	2.2/1.7	198
JF03-62-4/6	18.5/11	36.2/26	1440/960	0.88/0.75	88/85	7/6	1.3/1.7	2.2/1.7	212
JF03-62B-4/6	22/11	42.1/26.1	1440/960	0.885/0.75	89.5/85	5/7	1.5/1.7	2/1.5	260
JF03-62-4/12	10/3.3	19.5/9.9	1460/460	0.89/0.7	86.5/72	7.5/5	1.2/1.0	2/1.5
JF03-63-4/12	15/5	29.2/14.4	1460/460	0.89/0.71	87/74	7.5/5	1.2/1.0	2/1.5

Mounting and Overall Dimensions(mm)

Waterproof Double Speed Textile Motors 10KW / 5KW , Totally Enclosed 0

Frame Size	Mounting Dimensions (mm)									Overall Dimensions (mm)
Frame Size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
52	254	210	108	42	80	12	37	160	15	319	355	250	390	580
61	279	241	121	48	110	14	43	180	15	339	370	255	417	685
62	279	279	121	48	110	14	43	180	15	339	370	255	417	723
63	279	279	121	48	110	14	43	180	15	339	370	255	417	723

Description:

JFO3 double speed series textile motors are totally enclosed fan cooled. With high mechanical indexes ,this series motors are suitable for textile machines of cotton ,wool, linen, and silk under the working conditions of plentiful dust and short fibers ,high temperature and humidity .Its double speed motors are mainly designed for spinning-frame.

Applications:

With high mechanical indexes, JFO3 double speed series textile motors are suitable for textile machines of cotton ,wool, linen, and silk

Competitive Advantage:

Relying on continuous innovation ,HD textile motors become one of the best in the textile motor industry with their perfect performance , reliable quality , high efficiency and energy reservation.HD will continuously uses the knowledge and experience in motor design and manufacturing, and implement comprehensive quality control according to ISO9001 2008, and serve customers with high quality products and good service.

1. Focus on the manufacture of textile motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
