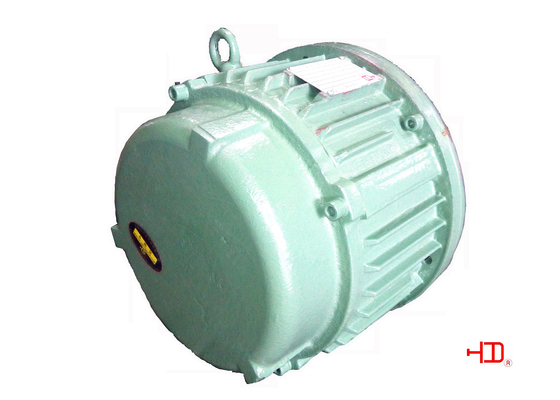

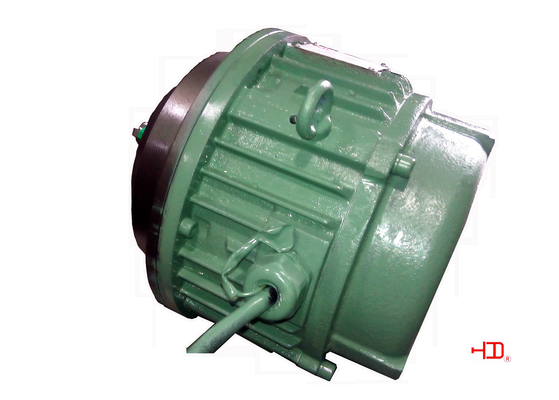

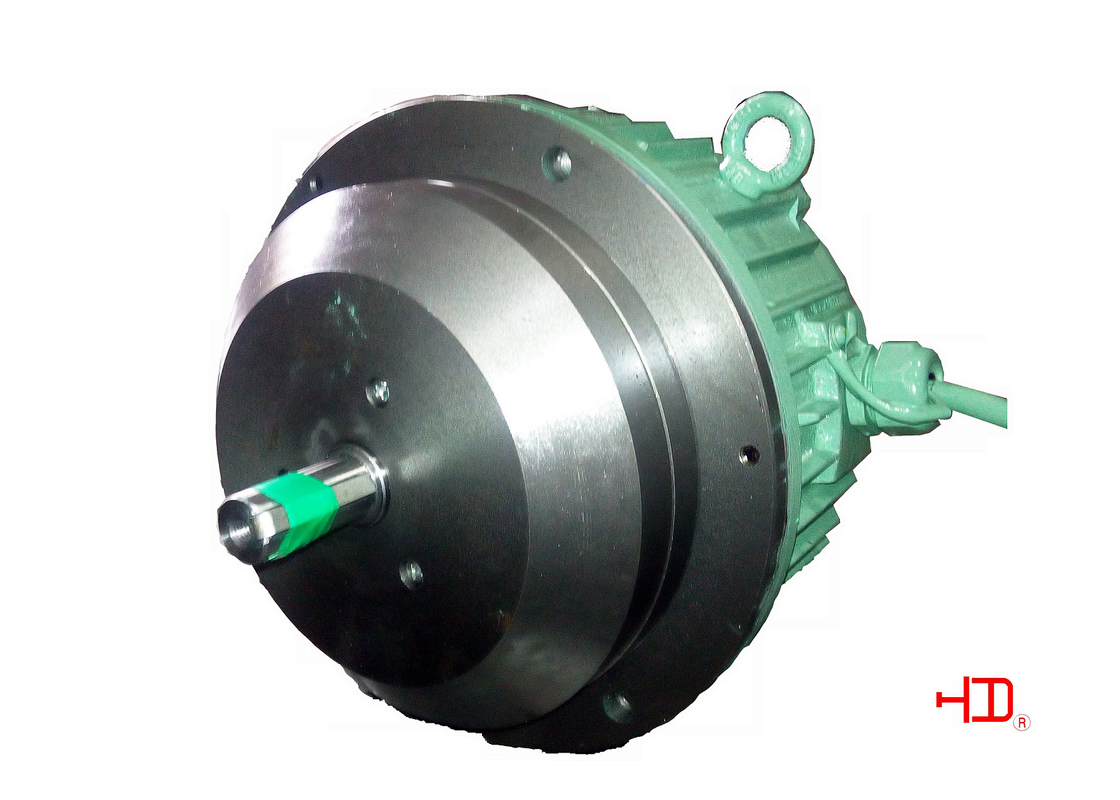

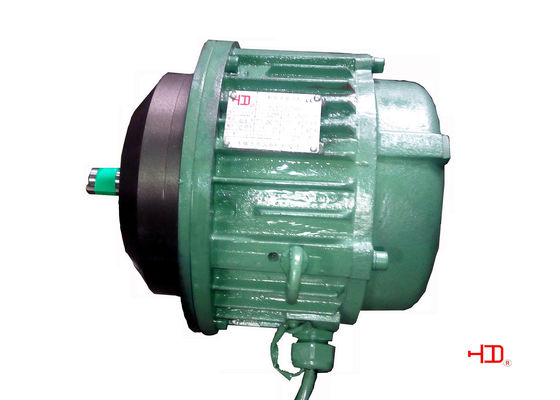

Totally Enclosed Textile Motors , Waterproof Variable Speed Electric Motor IP54

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Totally Enclosed Textile Motors , Waterproof Variable Speed Electric Motor IP54 Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YCF132
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 20 working days after order
Payment Terms: T/T or L/C
Supply Ability: 5,000pcs per month
Detailed Product Description
High Light:

low rpm electric motor

,

variable speed electric motor

Totally Enclosed Textile Motors , Waterproof Variable Speed Electric Motor IP54





Description:



YCF132 series textile motors are specially designed for driving fan of textile machines. This series motors have low temperature rise , small size ,low noise and strong dustproof ability. YCF132 series motors are suitable for speed drawing frame, fan of spinning-frames under the working conditions of plentiful dust and short fibers, high temperature and humidity or other similar conditions.





Applications:



YCF132 series motors are suitable for speed drawing frame, fan of spinning-frames under the working conditions of plentiful dust and short fibers, high temperature and humidity or other similar conditions.





Ambient

Temperature range:

-15~40℃

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%



Standard Feature:

Standard

IEC /DIN

Efficiency Level

IE1

Phase

Three-phase

Frame Size

H132 cast iron frame

Protect Feature

Totally Enclosed

Output Range

2.2~7.5KW

Voltage

380V

Frequency

50HZ

Pole

2

Protection Class

IP54

Insulation

F/B

Cooling

IC411

Duty

S1

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements





Technical Specification (2 pole ,380V/50HZ)



Motor    Type

Rated    Power

Current

Rated       Speed

Power  Factor

Efficiency

Locked Current

Locked Torque

Maximum Torque

Rated Current

Rated Torque

Rated Torque

KW

A

r/min

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

YCF 132S01-2

2.2

4.7

2890

0.85

88

7

2

2.3

YCF 132S02-2

3

6.4

2890

0.85

88

7

2

2.3

YCF 132S01-3

4

8.1

2890

0.85

88

7

2

2.3

YCF 132S1-2

5.5

10.5

2910

0.86

88

7

2

2.3

YCF 132S2-2

6

11.4

2910

0.86

88

7

2

2.3

YCF 132L3-2

7.5

15

2910

0.86

88

7

2

2.3



Mounting and Overall Dimensions(mm)

Totally Enclosed Textile Motors , Waterproof Variable Speed Electric Motor IP54 0



Frame Size

Mounting Dimensions (mm)

Overall Dimensions (mm)

C

D

E

F

G

M

M1

N

P

R

I

T

S

LA

L

132S

58

22

46

8

18

228

M8*25L

200

255

2

146

35

3-M10

21

240

132L

58

38

94

10

33

228

M8*25L

200

255

4

146

35

3-M12

21

330
