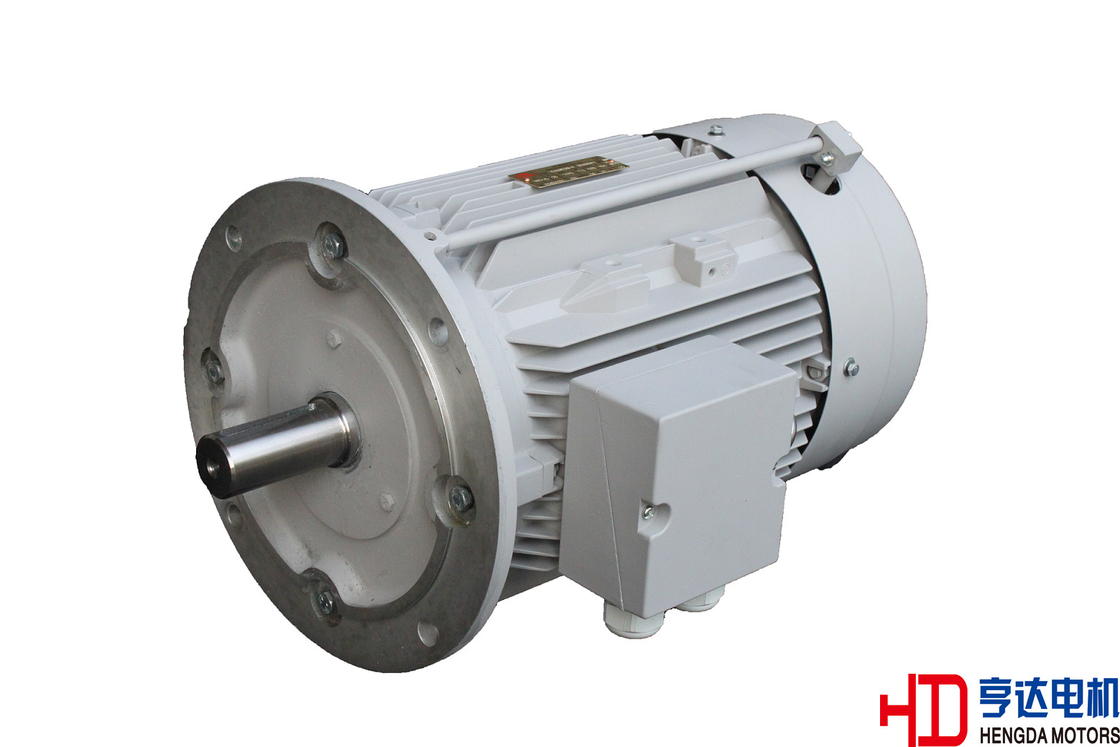

High Speed H112 Aluminum Frame 3 Phase 5.5HP Electric Motors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Standard: | IEC /DIN | Phase: | Three-phase |
|---|---|---|---|
| Frame Size: | H112 Aluminum Frame | Protect Feature: | Totally Enclosed |
| High Light: | energy efficient electric motors,high horsepower electric motor |
||
High Speed 3 Phase 5.5HP High Temperature Electric Motors 1.1KW / 4 KW
|
Ambient |
||
|
Temperature range: |
-15~55℃ |
|
|
Ambient humidity: |
90%less than relative humidity |
|
|
Altitude: |
less than 1000m above sea level |
|
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
|
Supply power: |
||
|
Voltage variable |
±5% |
|
|
frequency variable |
±2% Combine voltage and frequency variable : ±5% |
|
|
Standard Feature: |
||
|
Efficiency Level |
IE2 |
|
|
Output Range |
1.1~4KW |
|
|
Frequency |
50HZ |
|
|
Poles |
2,4,6,8 |
|
|
Protection Class |
IP55 |
|
|
Insulation |
H |
|
|
Shaft hardness |
HB225 |
|
|
Stator winding temperature rise |
125K(resistance method) |
|
|
Mounting |
IMB3 or on your request |
|
|
Cooling |
IC411 |
|
|
Duty |
S1 |
|
|
Thermometry |
Optional |
|
|
Certification |
CCC, CE,ISO9001 |
|
|
Special motors can be designed according to customers' requirements |
||
Rated Power
|
Motor Type |
2 pole /3000 rpm |
4 pole /1500 rpm |
6pole /1000 rpm |
8pole /750 rpm |
||||
|
kW |
HP |
kW |
HP |
kW |
HP |
kW |
HP |
|
|
YEA2GW 112M |
4 |
5.5 |
4 |
5.5 |
2.20 |
3 |
1.1 |
1.5 |
Description:
YEA2GW-H112 is High temperature resistant with Aluminum Frame.
When the Ambient temperature is less than 55 degrees, the temperature of shaft , flange and other parts increase to 250 degrees, the motor can be still working well for connecting directly to the circulating fan. Using high temperature resistant bearing which should be filled in 7017-1 high temperature grease after 1500 hours running.
H class insulation makes the motor with higher heat stability and longer life, and ensures the continuous production of printing and dyeing machinery industry.
Applications:
The motor application is directing for circulation fan, printing and dyeing machinery industry or other similar conditions.
