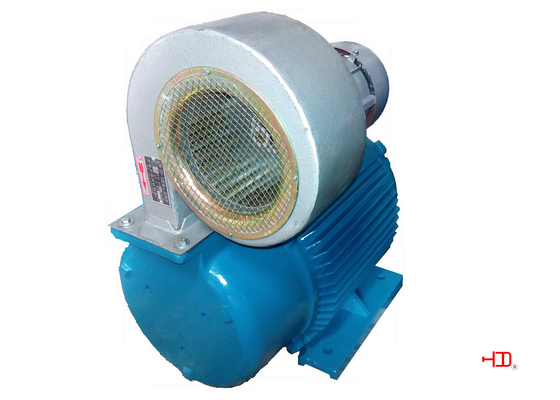

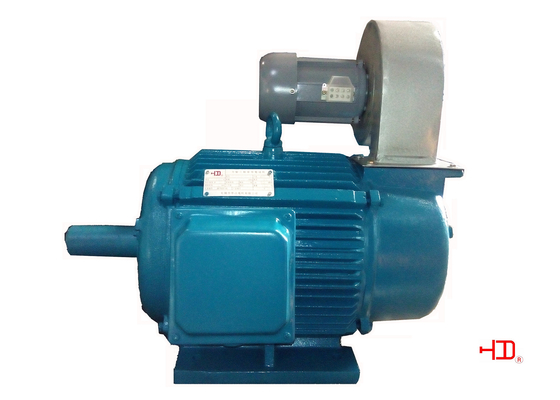

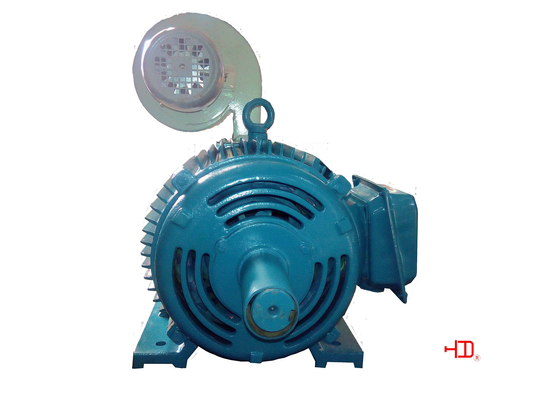

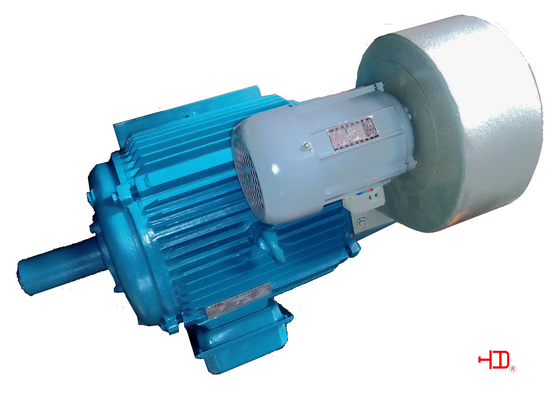

Custom Industrial Electric Motor With Reduction Gear , Centrifugal Blower Cooling Type

Large Image : Custom Industrial Electric Motor With Reduction Gear , Centrifugal Blower Cooling Type Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YLJF-H132

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	5,000 pcs per month

Contact Now

Detailed Product Description

High Light:

small high torque electric motor

high torque low speed electric motor

Custom Industrial Electric Motor With Reduction Gear , Centrifugal Blower Cooling Type

electric motor with reduction gear
1. Factory direct sell
2. Material,technology from TaiWan
3. ce psat

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90% less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard		IEC
Phase		Three-phase
Frame Size		H132 Cast iron frame
Frequency		50HZ
Cooling type		Centrifugal blower
Voltage		380V
Poles		4,6
Blower		Be opened constantly
Connection		Y
Certification		CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Meaning of type code

Technical Specification

Type	Frame (mm)	Output Torque (N.m)	Pole	Maximum Current	Locked Time (min)
YLJF132S-16-4	132	16	4	8	10
YLJF132S-25-4		25		15
YLJF132M-40-4		40		25
YLJF132S-16-6		16	6	8
YLJF132S-25-6		25		13
YLJF132S-40-6		40		20

Mounting and Overall Dimensions(mm)

Frame Size	Mounting Dimensions (mm)									Overall Dimensions (mm)
Frame Size	A	B	C	D	E	FXGD	G	H	K	AB	AC	AD	AE	HD	AA	BB	HA	L
YLJF132S	216	140	89	38	80	10*8	33	132	12	280	275	260	165	470	65	205	20	486
YLJF132M	216	178	89	38	80	10*8	33	132	12	280	275	260	165	470	65	245	20	525

Description:

1, Winding:The tension of YLJF series torque motor will remain steady from blank panel to plateful.
It is convenient to adjust the tension and will repeat normally after regulating.
With reliable structure and low cost, the motor is easy to operate and maintain.
2, Decoiling:The torque motor is in a reverse braking state as tension control. It is able to meet the needs through regulating device to control the size of the braking torque , so the voltage should not be over 300V.
3, Locked:In some special occasions, moment last for some time is necessary.
The locked time for our torque motor can be according to the nameplate. If longer time is needed , bigger motor can be choosed .
4, Moment:Due to the soft mechanical properties , torque motor will have low efficiency during low speed running , so it is unfavorable to operate under low speed for a long time.

Applications:

YLJF series three phase torque motor is a special motor with soft mechanical properties and wide speed range. They can be widely used for metal processing, textile, papermaking, wire and cable, rubber, chemical industry or other similar conditions.
