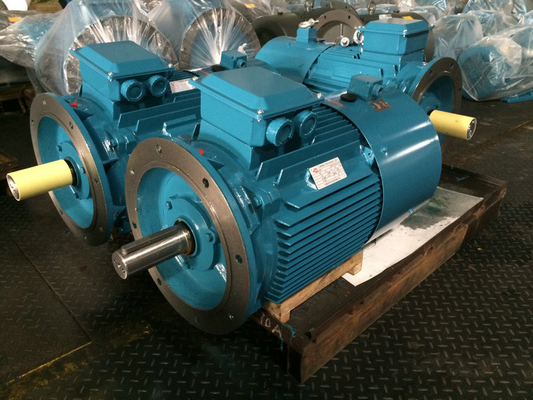

Totally Enclosed 90KW Inverter Duty Motor 7.5HP / 125HP Air Compressor Electric Motor

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Totally Enclosed 90KW Inverter Duty Motor 7.5HP / 125HP Air Compressor Electric Motor Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: Y2VP-B5
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

inverter electric motor

,

inverter duty rated motor

Totally Enclosed 90KW Inverter Duty Motor 7.5HP / 125HP Air Compressor Electric Motor





Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC

Efficiency Level

IE1

Phase

Three-phase

Frame Size

H80~280 cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.75~90KW

Frequency

50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)

Poles

2,4,6

Protection Class

IP55

Insulation

F/B

Mounting

IMB5 /IM3001

Cooling

IC416

Duty

S1

Lubricating grease

SRI-2

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements







Rated Power



Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

kW

HP

kW

HP

kW

HP

Y2VP80M1

0.75

1









Y2VP80M2

1.1

1.5

0.75

1





Y2VP90S

1.5

2

1.1

1.5

0.75

1

Y2VP90L

2.2

3

1.5

2

1.1

1.5

Y2VP100L

3.0

4

2.2

3

1.5

2





3.0

4





Y2VP112M

4.0

5.5

4.0

5.5

2.2

3

Y2VP132S1

5.5

7.5

5.5

7.5

3.0

4

Y2VP132S2

7.5

10









Y2VP132M





7.5

10

4.0

5.5









5.5

7.5

Y2VP160M

11

15

11

15

7.5

10

15

20









Y2VP160L

18.5

25

15

20

11

15

Y2VP180M

22

30

18.5

25





Y2VP180L





22

30

15

20

Y2VP200L

30

40

30

40

18.5

25

37

50





22

30

Y2VP225S





37

50





Y2VP225M

45

60

45

60

30

40

Y2VP250M

55

75

55

75

37

50

Y2VP280S

75

100

75

100

45

60

Y2VP280M

90

125

90

125

55

75

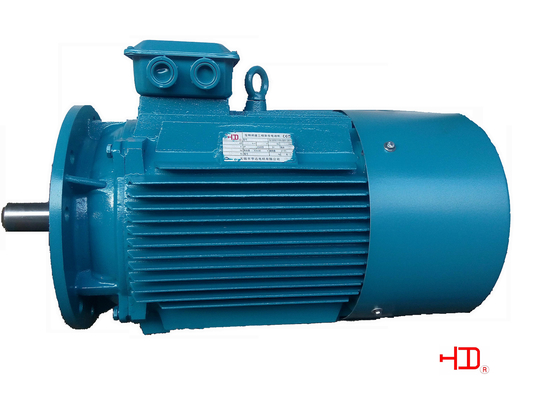

Mounting Type:IMB5 /IM3001: without feet , but with flange on the DE side.

Totally Enclosed 90KW Inverter Duty Motor 7.5HP / 125HP Air Compressor Electric Motor 0





IM B5 Mounting and overall dimensions(mm)



Frame Size

Pole

Mounting Dimensions (mm)

Overall Dimensions (mm)

D

E

F

G

M

N

P

S

T

R

AC

AD

LD

LA

L

80M

2,4,6

19

40

6

15.5

165

130

200

4-¢12

3.5

0

167

165

74

12

355

90S

2,4,6

24

50

8

20

165

130

200

4-¢12

3.5

0

190

175

76

12

385

90L

2,4,6

24

50

8

20

165

130

200

4-¢12

3.5

0

190

175

76

12

410

100L

2,4,6

28

60

8

24

215

180

250

4-¢14.5

4

0

215

200

83

13

460

112M

2,4,6

28

60

8

24

215

180

250

4-¢14.5

4

0

240

220

87

14

470

132S

2,4,6

38

80

10

33

265

230

300

4-¢14.5

4

0

275

240

102

14

540

132M

2,4,6

38

80

10

33

265

230

300

4-¢14.5

4

0

275

240

102

14

580

160M

2,4,6

42

110

12

37

300

250

350

4-¢18.5

5

0

320

285

149

15

660

160L

2,4,6

42

110

12

37

300

250

350

4-¢18.5

5

0

320

285

149

15

700

180M

2,4,6

48

110

14

42.5

300

250

350

4-¢18.5

5

0

380

310

161

15

770

180L

2,4,6

48

110

14

42.5

300

250

350

4-¢18.5

5

0

380

310

161

15

810

200L

2,4,6

55

110

16

49

350

300

400

4-¢18.5

5

0

410

335

186

17

850

225S

4

60

140

18

53

400

350

450

8-¢18.5

5

0

470

370

189

20

900

225M

2

55

110

16

49

400

350

450

8-¢18.5

5

0

470

370

189

20

890

4,6

60

140

18

53

400

350

450

8-¢18.5

5

0

470

370

189

20

920

250M

2

60

140

18

53

500

450

550

8-¢18.5

5

0

490

380

207

22

1040

4,6

65

140

18

58

500

450

550

8-¢18.5

5

0

490

380

207

22

1040

280S

2

65

140

18

58

500

450

550

8-¢18.5

5

0

580

410

215

22

1100

4,6

75

140

20

67.5

500

450

550

8-¢18.5

5

0

580

410

215

22

1100

280M

2

65

140

18

58

500

450

550

8-¢18.5

5

0

580

410

215

22

1155

4,6

75

140

20

67.5

500

450

550

8-¢18.5

5

0

580

410

215

22

1155





Terminal Box



Frame Size

Dia.of the thread(mm)

X*Y*Z(mm)

80

1-M24*1.5

95*95*50

90-100

1-M24*1.5

102*102*50

112-132

2-M30*2

108*123*75

160-180

2-M36*2

150*160*105

200-225

2-M48*2

188*208*105

250-280

2-M64*2

216*251*120







Description:



Y2VP series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement

The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.





The following as options or customer’s request:





Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others





Applications:





They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.





Competitive Advantage:



HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
