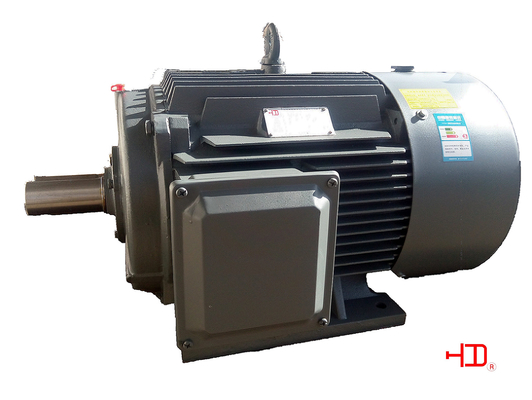

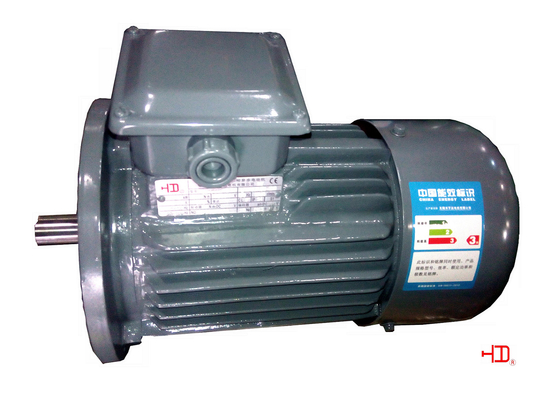

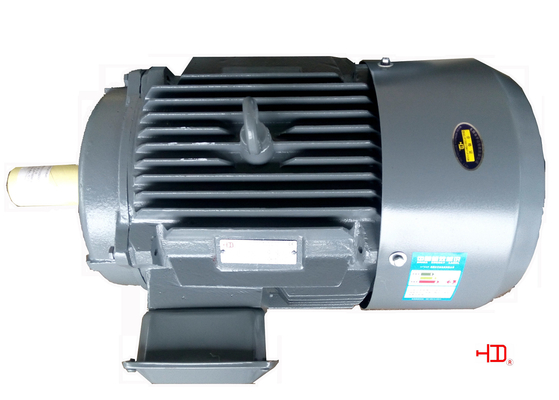

1.5 / 2 Horsepower IE2 Industrial Electric Motor Inverter For Air Conditioner

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1.5 / 2 Horsepower IE2 Industrial Electric Motor Inverter For Air Conditioner Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YE2VP 4pole
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 20 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

inverter duty rated motor

,

3 phase inverter duty motor

1.5 / 2 Horsepower IE2 Industrial Electric Motor Inverter For Air Conditioner





Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC/GB

Efficiency Level

IE2

Phase

Three-phase

Frame Size

H80~355 cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.75~315KW

Frequency

50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)

Poles

4

Protection Class

IP55

Insulation

F/B

Mounting

IMB3 /IMB35/IMV1 or on your request

Cooling

IC416

Duty

S1

Lubricating grease

SRI-2

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements





Technical Specification (4 pole/ Synchronous speed 1500r/min in 50HZ )



Motor Type

Rated    Power

Current

Rated       Speed

Rated       Torque

Power  Factor

Efficiency

Locked Current

Locked Torque

Maximum Torque

Rated Current

Rated Torque

Rated Torque

kW

HP

380V  InA

400V IoA

r/min

N.m

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

YE2VP80M2-4

0.75

1

1.9

1.8

1380

4.8

0.76

79.6

6.4

2.3

2.3

YE2VP90S-4

1.1

1.5

2.7

2.5

1390

7.0

0.77

81.4

6.6

2.3

2.3

YE2VP90L-4

1.5

2

3.5

3.4

1390

9.5

0.78

82.8

6.7

2.3

2.3

YE2VP100L1-4

2.2

3

5.0

4.7

1410

14.0

0.80

84.3

7.3

2.3

2.3

YE2VP100L2-4

3.0

4

6.6

6.3

1410

19.1

0.81

85.5

7.5

2.3

2.3

YE2VP112M-4

4.0

5.5

8.7

8.2

1440

25.5

0.81

86.6

7.5

2.3

2.3

YE2VP132S-4

5.5

7.5

11.6

11.0

1445

35.0

0.82

87.7

7.5

2.0

2.3

YE2VP132M-4

7.5

10

15.5

14.7

1445

47.7

0.83

88.7

7.3

2.0

2.3

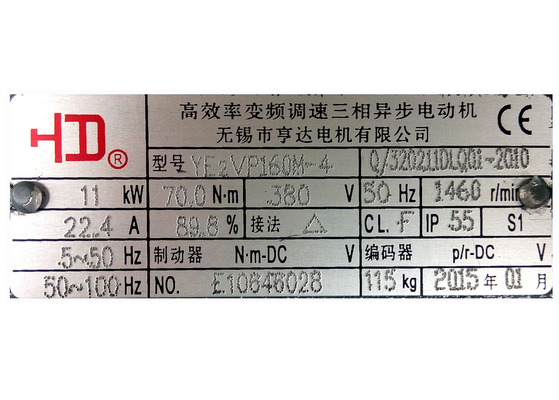

YE2VP160M-4

11

15

22.4

21.3

1460

70.0

0.83

89.8

7.4

2.0

2.3

YE2VP160L-4

15

20

29.9

28.4

1460

95.5

0.84

90.6

7.5

2.0

2.3

YE2VP180M-4

18.5

25

36.3

34.4

1470

117.8

0.85

91.2

7.6

2.0

2.3

YE2VP180L-4

22

30

42.9

40.8

1470

140.1

0.85

91.6

7.7

2.1

2.3

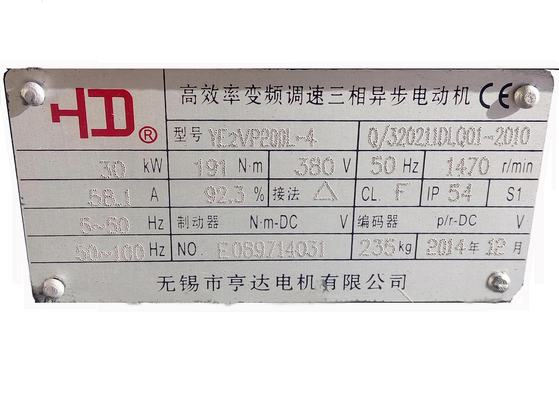

YE2VP200L-4

30

40

58.1

55.2

1470

191.0

0.85

92.3

7.1

2.1

2.3

YE2VP225S-4

37

50

71

67

1475

235.5

0.86

92.7

7.3

2.1

2.3

YE2VP225M-4

45

60

85

81

1475

286.5

0.86

93.1

7.3

2.2

2.3

YE2VP250M-4

55

75

104

99

1475

350.1

0.86

93.5

7.3

2.2

2.3

YE2VP280S-4

75

100

139

132

1485

477.5

0.87

94.0

6.8

2.2

2.3

YE2VP280M-4

90

125

165

157

1485

572.9

0.88

94.2

6.9

2.2

2.3

YE2VP315S-4

110

150

199

189

1485

700.3

0.89

94.5

6.9

2.1

2.2

YE2VP315M-4

132

180

238

226

1485

840.3

0.89

94.7

6.9

2.1

2.2

YE2VP315L1-4

160

215

285

270

1485

1018.6

0.90

94.9

6.9

2.1

2.2

YE2VP315L2-4

200

270

355

337

1485

1273.2

0.90

95.1

6.9

2.1

2.2

YE2VP355M-4

250

340

444

422

1490

1591.5

0.90

95.1

6.9

2.0

2.2

YE2VP355L-4

315

420

559

531

1490

2005.3

0.90

95.1

6.9

2.0

2.2





Greasing Period



Greasing Type

Frame Size

Pole

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H80~160

4

40000 h

H180~280

4

40000 h

Regreasing

H315~355

4

60000 h



Bearings

Frame

DE side

NDE side

80

6204-2RZ-C3

6204-2RZ-C3

90

6205-2RZ-C3

6205-2RZ-C3

100

6206-2RZ-C3

6206-2RZ-C3

112

6306-2RZ-C3

6306-2RZ-C3

132

6308-2RZ-C3

6308-2RZ-C3

160

6309-2RZ-C3

6309-2RZ-C3

180

6311-C3

6311-C3

200

6312-C3

6312-C3

225

6313-C3

6313-C3

250

6314-C3

6314-C3

280

6314-C3

6314-C3

315

6317-C3

6317-C3

355

6319-C3

6319-C3





Description:



Based on national policies and responding to the market demand , YE2VP-IE2 series high efficiency inverter duty motor is developed with low noise , little vibration, wide speed range and reliable operation.

YE2VP series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement

The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.





The following as options or customer’s request:





Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  Special painting

  Humid-tropical “TH”

  Others





Applications:



They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.





Competitive Advantage:



HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
