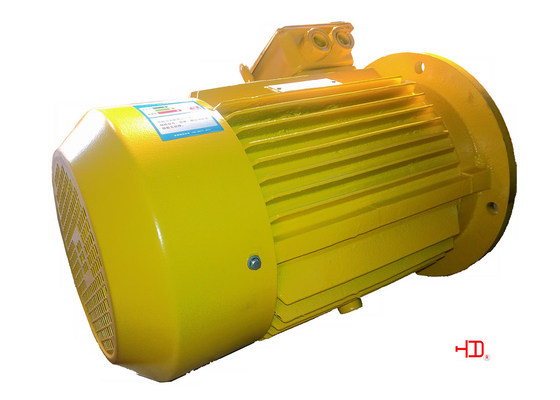

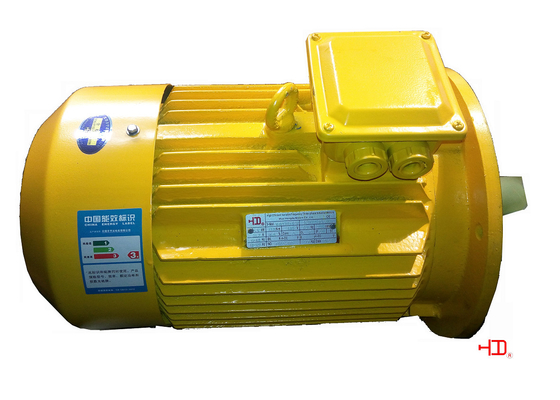

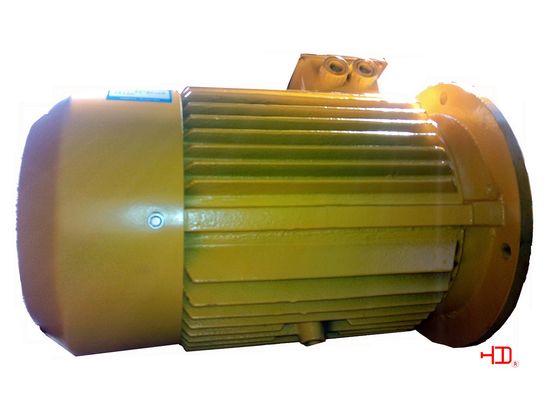

Waterproof Class F/B Inverter Duty Motor , IMB3 / IMB35 Totally Enclosed Motors

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Waterproof Class F/B Inverter Duty Motor , IMB3 / IMB35 Totally Enclosed Motors Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: YE2VP-6pole
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 20 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
High Light:

inverter electric motor

,

3 phase inverter duty motor

Waterproof Class F/B Inverter Duty Motor , IMB3 / IMB35 Totally Enclosed Motors



Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC/GB

Efficiency Level

IE2

Phase

Three-phase

Frame Size

H90~355 cast iron frame

Protect Feature

Totally Enclosed

Output Range

0.75~250KW

Frequency

50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)

Poles

6

Protection Class

IP55

Insulation

F/B

Mounting

IMB3 /IMB35/IMV1 or on your request

Cooling

IC416

Duty

S1

Lubricating grease

SRI-2

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements





Technical Specification (6 pole/ Synchronous speed 1000r/min in 50HZ )



Motor    Type

Rated    Power

Current

Rated       Speed

Rated       Torque

Power  Factor

Efficiency

Locked Current

Locked Torque

Maximum Torque

Rated Current

Rated Torque

Rated Torque

kW

HP

380V  InA

400V IoA

r/min

N.m

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

YE2VP90S-6

0.75

1

2.1

2.0

915

7.2

0.71

75.9

5.8

2.0

2.1

YE2VP90L-6

1.1

1.5

3.0

2.8

915

10.5

0.72

78.1

5.9

2.0

2.1

YE2VP100L-6

1.5

2

4.0

3.8

920

14.3

0.72

79.8

5.9

2.0

2.1

YE2VP112M-6

2.2

3

5.7

5.4

940

21.0

0.72

81.8

6.2

2.0

2.1

YE2VP132S-6

3.0

4

7.6

7.2

960

28.6

0.72

83.3

6.4

2.0

2.1

YE2VP132M1-6

4.0

5.5

9.7

9.2

960

38.2

0.74

84.6

6.6

2.0

2.1

YE2VP132M2-6

5.5

7.5

13.0

12.3

960

52.5

0.75

86.0

6.8

2.0

2.1

YE2VP160M-6

7.5

10

16.8

15.9

970

71.6

0.78

87.2

6.8

2.0

2.1

YE2VP160L-6

11

15

23.9

22.7

970

105.0

0.79

88.7

6.9

2.0

2.1

YE2VP180L-6

15

20

31.0

29.4

970

143.2

0.82

89.7

7.3

2.0

2.1

YE2VP200L1-6

18.5

25

38.9

36.9

975

176.7

0.80

90.4

7.2

2.0

2.1

YE2VP200L2-6

22

30

45.4

43.1

975

210.1

0.81

90.9

7.3

2.0

2.1

YE2VP225M-6

30

40

61

58

980

286.5

0.82

91.7

6.8

2.0

2.1

YE2VP250M-6

37

50

73

70

980

353.3

0.83

92.2

7.0

2.0

2.1

YE2VP280S-6

45

60

87

82

980

429.7

0.85

92.7

7.2

2.0

2.0

YE2VP280M-6

55

75

104

99

980

525.2

0.86

93.1

7.2

2.0

2.0

YE2VP315S-6

75

100

145

138

985

716.2

0.84

93.7

6.5

2.0

2.0

YE2VP315M-6

90

125

171

163

985

859.4

0.85

94.0

6.6

2.0

2.0

YE2VP315L1-6

110

150

209

198

985

1050.4

0.85

94.3

6.6

2.0

2.0

YE2VP315L2-6

132

180

247

234

985

1260.5

0.86

94.6

6.6

2.0

2.0

YE2VP355M1-6

160

215

298

283

990

1527.8

0.86

94.8

6.7

2.0

2.0

YE2VP355M2-6

200

270

372

353

990

1909.8

0.86

95.0

6.8

2.0

2.0

YE2VP355L-6

250

340

465

442

990

2387.3

0.86

95.0

6.8

2.0

2.0





Greasing Period



Greasing Type

Frame Size

Pole

Grease Life/Relubrication Interval(Up to CT40℃)

Prelubricated

H90~160

6

40000 h

H180~280

6

40000 h

Regreasing

H315~355

6

60000 h





Bearings



Frame

DE side

NDE side

90

6205-2RZ-C3

6205-2RZ-C3

100

6206-2RZ-C3

6206-2RZ-C3

112

6306-2RZ-C3

6306-2RZ-C3

132

6308-2RZ-C3

6308-2RZ-C3

160

6309-2RZ-C3

6309-2RZ-C3

180

6311-C3

6311-C3

200

6312-C3

6312-C3

225

6313-C3

6313-C3

250

6314-C3

6314-C3

280

6314-C3

6314-C3

315

6317-C3

6317-C3

355

6319-C3

6319-C3







Description:



Based on national policies and responding to the market demand , YE2VP-IE2 series high efficiency inverter duty motor is developed with low noise , little vibration, wide speed range and reliable operation.

YE2VP series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement

The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.





Applications:



They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.





Competitive Advantage:



HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
