High Efficiency Asynchronous Inverter Duty Motor 90kw / 132kw With Iec / Gb Standard

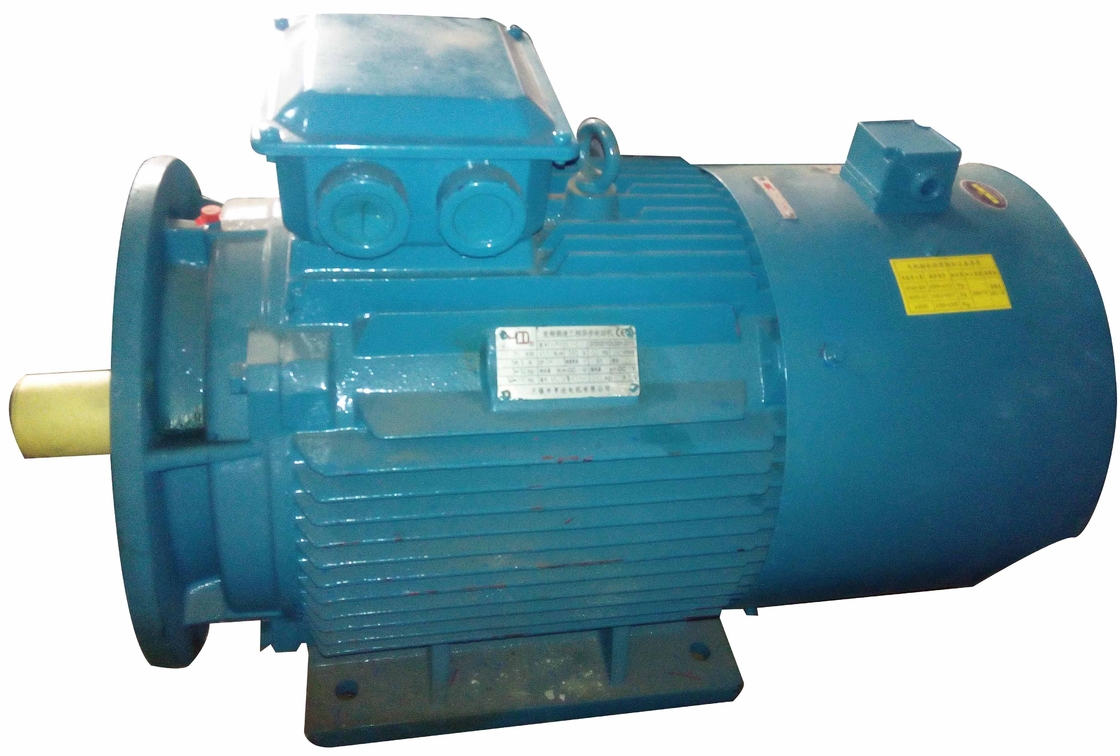

Large Image : High Efficiency Asynchronous Inverter Duty Motor 90kw / 132kw With Iec / Gb Standard Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CE/CCC/ISO9001
Model Number:	YE2VP B35

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation

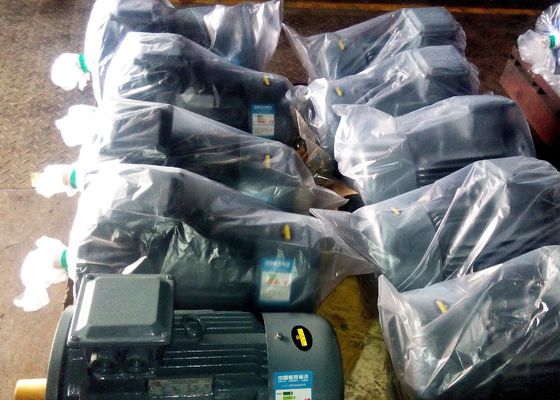

Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

High Light:

inverter electric motor

3 phase inverter duty motor

High Efficiency Asynchronous Inverter Duty Motor 90kw / 132kw With Iec / Gb Standard

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%
Standard Feature:
Standard	IEC/GB
Efficiency Level	IE2
Phase	Three-phase
Frame Size	H80~355 cast iron frame
Protect Feature	Totally Enclosed
Output Range	0.75~315KW
Frequency	50HZ( 5~50Hz Constant Torque, 50~100Hz constant power)
Poles	2, 4 , 6
Protection Class	IP55
Insulation	F/B
Mounting	IMB35 /IM2001
Cooling	IC416
Duty	S1
Lubricating grease	SRI-2
Thermometry	Optional
Certification	CCC, CE,ISO9001
Special motors can be designed according to customers' requirements

Motor Type	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	2 pole /3000 rpm		4 pole /1500 rpm		6pole /1000 rpm
	kW	HP	kW	HP	kW	HP
YE2VP80M1	0.75	1
YE2VP80M2	1.1	1.5	0.75	1
YE2VP90S	1.5	2	1.1	1.5	0.75	1
YE2VP90L	2.2	3	1.5	2	1.1	1.5
YE2VP100L	3.0	4	2.2	3	1.5	2
YE2VP100L			3.0	4
YE2VP112M	4.0	5.5	4.0	5.5	2.2	3
YE2VP132S	5.5	7.5	5.5	7.5	3.0	4
YE2VP132S	7.5	10
YE2VP132M			7.5	10	4.0	5.5
YE2VP132M					5.5	7.5
YE2VP160M	11	15	11	15	7.5	10
YE2VP160M	15	20
YE2VP160L	18.5	25	15	20	11	15
YE2VP180M	22	30	18.5	25
YE2VP180L			22	30	15	20
YE2VP200L	30	40	30	40	18.5	25
YE2VP200L	37	50			22	30
YE2VP225S			37	50
YE2VP225M	45	60	45	60	30	40
YE2VP250M	55	75	55	75	37	50
YE2VP280S	75	100	75	100	45	60
YE2VP280M	90	125	90	125	55	75
YE2VP315S	110	150	110	150	75	100
YE2VP315M	132	180	132	180	90	125
YE2VP315L1	160	215	160	215	110	150
YE2VP315L2	200	270	200	270	132	180
YE2VP355M	250	340	250	340	160	215
YE2VP355M					200	270
YE2VP355L	315	420	315	420	250	340

Mounting Type: IMB35 /IM2001: with feet and with flange on the DE side.

High Efficiency Asynchronous Inverter Duty Motor 90kw / 132kw With Iec / Gb Standard 0

IM B35 Mounting and overall dimensions(mm)

Frame Size	Pole	Mounting Dimensions (mm)															Overall Dimensions (mm)
Frame Size	Pole	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AA	AB	AC	AD	HD	LD	BB	HA	L
80M	2,4,6	125	100	50	19	40	6	15.5	80	10	165	130	200	0	4-￠12	3.5	34	165	167	165	245	74	130	10	355
90S	2,4,6	140	100	56	24	50	8	20	90	10	165	130	200	0	4-￠12	3.5	36	180	190	175	265	76	140	12	385
90L	2,4,6	140	125	56	24	50	8	20	90	10	165	130	200	0	4-￠12	3.5	36	180	190	175	265	76	165	12	410
100L	2,4,6	160	140	63	28	60	8	24	100	12	215	180	250	0	4-￠14.5	4	40	205	215	200	290	83	176	14	460
112M	2,4,6	190	140	70	28	60	8	24	112	12	215	180	250	0	4-￠14.5	4	45	230	240	220	325	87	180	15	470
132S	2,4,6	216	140	89	38	80	10	33	132	12	265	230	300	0	4-￠14.5	4	55	270	275	240	365	102	186	18	540
132M	2,4,6	216	178	89	38	80	10	33	132	12	265	230	300	0	4-￠14.5	4	55	270	275	240	365	102	224	18	580
160M	2,4,6	254	210	108	42	110	12	37	160	14.5	300	250	350	0	4-￠18.5	5	65	320	320	285	440	149	260	20	660
160L	2,4,6	254	254	108	42	110	12	37	160	14.5	300	250	350	0	4-￠18.5	5	65	320	320	285	440	149	260	20	700
180M	2,4,6	279	241	121	48	110	14	42.5	180	14.5	300	250	350	0	4-￠18.5	5	70	355	380	310	470	161	315	22	770
180L	2,4,6	279	279	121	48	110	14	42.5	180	14.5	300	250	350	0	4-￠18.5	5	70	355	380	310	470	161	350	22	810
200L	2,4,6	318	305	133	55	110	16	49	200	18.5	350	300	400	0	4-￠18.5	5	70	395	410	335	525	186	370	25	850
225S	4	356	286	149	60	140	18	53	225	18.5	400	350	450	0	8-￠18.5	5	75	435	470	370	580	189	388	28	900
225M	2	356	311	149	55	110	16	49	225	18.5	400	350	450	0	8-￠18.5	5	75	435	470	370	580	189	395	28	890
225M	4,6	356	311	149	60	140	18	53	225	18.5	400	350	450	0	8-￠18.5	5	75	435	470	370	580	189	395	28	920
250M	2	406	349	168	60	140	18	53	250	24	500	450	550	0	8-￠18.5	5	80	490	490	380	635	207	445	30	1040
250M	4,6	406	349	168	65	140	18	58	250	24	500	450	550	0	8-￠18.5	5	80	490	490	380	635	207	445	30	1040
280S	2	457	368	190	65	140	18	58	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	485	35	1100
280S	4,6	457	368	190	75	140	20	67.5	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	485	35	1100
280M	2	457	419	190	65	140	18	58	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	540	35	1155
280M	4,6	457	419	190	75	140	20	67.5	280	24	500	450	550	0	8-￠18.5	5	85	550	580	410	698	215	540	35	1155
315S	2	508	406	216	65	140	18	58	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	570	45	1330
315S	4,6	508	406	216	80	170	22	71	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	570	45	1330
315M	2	508	457	216	65	140	18	58	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1400
315M	4,6	508	457	216	80	170	22	71	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1430
315L	2	508	508	216	65	140	18	58	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1400
315L	4,6	508	508	216	80	170	22	71	315	28	600	550	660	0	8-￠24	6	120	630	645	535	885	257	680	45	1430
355M	2	610	560	254	75	140	20	67.5	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1580
355M	4,6	610	560	254	95	170	25	86	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1610
355L	2	610	630	254	75	140	20	67.5	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1580
355L	4,6	610	630	254	95	170	25	86	355	28	740	680	800	0	8-￠24	6	120	730	720	650	1065	284	750	52	1610

The following as options or customer’s request:

Protection class IP56

Space heater

Heat protector

Vibration detector

Special mounting dimension and shaft dimension

Low vibration and low noise

Bearing thermometer PT100(frame size H180 and above)

Winding thermometer PT100

Special painting

Humid-tropical “TH”

Others

Terminal Box

Frame Size	Dia.of the thread(mm)	*XYZ(mm)*
80	1-M24*1.5	959550
90-100	1-M24*1.5	10210250
112-132	2-M30*2	10812375
160-180	2-M36*2	150160105
200-225	2-M48*2	188208105
250-280	2-M64*2	216251120
315	2-M64*2	300358198
355	2-M72*2	300380200

Description:

Based on national policies and responding to the market demand , YE2VP-IE2 series high efficiency inverter duty motor is developed with low noise , little vibration, wide speed range and reliable operation.

YE2VP series motor can be used in inverter which is a typical motor of energy saving advanced electromagnetic calculation and special insulation system ensures the motorist for the inverter power supply system. In general the rated voltage is 380V, frequency is 50HZ, constant torque with frequency 5-50HZ, constant power with frequency 50-100HZ . The voltage and frequency of the rated point can be resumed according to the customers' requirement

The motor could conveniently be installed brake system ,encoder and tachometers to achieve the effect of rapid braking and automatic control .

Our company has passed ISO9001 certification and followed its requirements from ordering, development, fabrication, inspection to sales service strictly.

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.

Competitive Advantage:

HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.

High quality insulation material combines the perfect insulation system.

Perfect primer ensures the motors with good appearance and the motors are durable.

1. Focus on the manufacture of Low Voltage Motors;

2. Efficient customer services

3. Customized motors.

4. Competitive and reasonable pricing and delivery term;

5. Perfect quality assurance system

6. Credible after-sale service and warranty commitments
