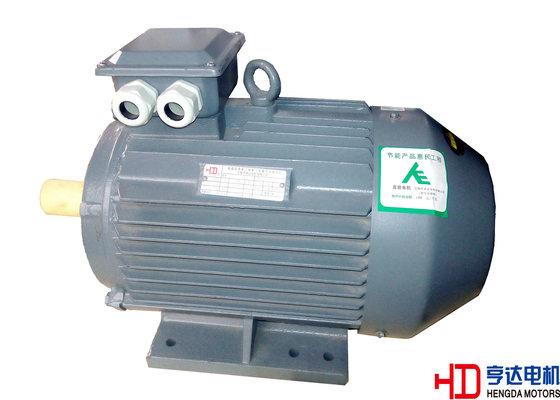

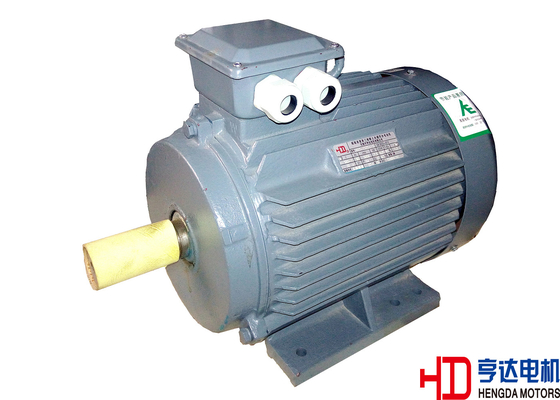

IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ

IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ
IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ

Large Image :  IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CE/CCC/ISO9001
Model Number: XYT-2pole
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Detailed Product Description
Standard: IEC /DIN Efficiency Level: IE4
Frame Size: H80~355 Cast Iron Frame Pole: 2
High Light:

permanent magnet dc motor

,

permanent magnet induction motor

IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ





XYT 2pole Super-High efficiency rare earth permanent magnet synchronic motors in Industry (H80~355 Cast Iron Frame)

Ambient

Temperature range:

-15~40℃

Ambient humidity:

90%less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%



Standard Feature:

Phase

Three-phase

Protect Feature

Totally Enclosed

Output Range

0.75~315KW

Voltage

380V

Frequency

50HZ

Protection Class

IP55

Insulation

F/B

Mounting

IMB3 /IMB35/IMV1 or on your request

Cooling

IC411

Duty

S1

Thermometry

Optional

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers' requirements



Meaning of type code



IE4 37KW 2 Pole High Efficiency Permanent Magnet Synchronous Electric Motor 380V 50HZ 0



Tolerance

The permanent magnet motors can withstand 1.5times rated current for 2 minutes occasional over current.Also the motor can withstand 1.5 times maximum rated speed for 2 minutes when no-load.



According to IEC60034, the motors are designed can withstand 1.5times rated voltage and rated current for 2 minutes.



Pull-out torque

Pull-out torque is an important index to reflect REPMSM overload capacity. Pull-out torque of XYT series is in the range of 2.0~2.5 which ensure good overload capacity.

Under the condition of hot state and torque increasing, REPMSM can withstand specified Pull-out torque values(tolerance) for 15s.At this point , the voltage and frequency should be maintained in the rated value.



Coupling and Driving

XYT series motor is coupling with load through coupler or belt which is outside the scope of a motor manufacturer’s supply.

XYT series motor has single shaft ,we can produce double shaft if need. The second one can deliver rated power, but only can be drived by coupling.



Technical Specification (2 pole/3000r/min  380V/50HZ)

Motor Type

Rated    Power

Current

Power  Factor

Efficiency

Locked Current

Locked Torque

Pull-out Torque

Weight

Rated Current

Rated Torque

Rated Torque

kW

HP

380V  InA

cosΦ

η%

Ist/IN

Tst/TN

TM/TN

kg

XYT80M1-2

0.75

1

1.2

0.98

84.9

7.0

3.1

2.3

16

XYT80M2-2

1.1

1.5

1.7

0.98

86.7

7.0

3.1

2.3

17

XYT90S-2

1.5

2

2.4

0.98

87.5

7.0

3.1

2.3

22

XYT90L-2

2.2

3

3.4

0.98

89.1

7.0

3.1

2.3

25

XYT100L-2

3.0

4

4.7

0.98

89.7

7.5

3.1

2.3

33

XYT112M-2

4.0

5.5

6.2

0.98

90.3

7.5

3.1

2.3

40

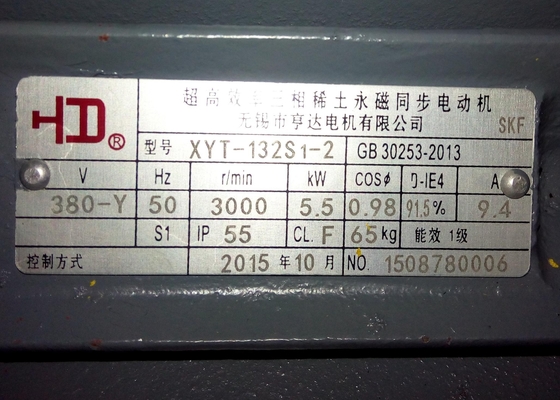

XYT132S1-2

5.5

7.5

8.6

0.98

91.5

7.5

3.1

2.3

59

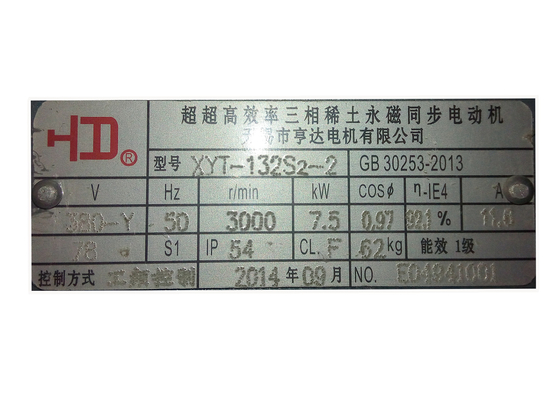

XYT132S2-2

7.5

10

11.6

0.98

92.1

7.5

3.1

2.3

62

XYT160M1-2

11

15

17.1

0.98

93.0

7.5

3.0

2.3

107

XYT160M2-2

15

20

23.3

0.98

93.4

7.5

3.1

2.3

117

XYT160L-2

18.5

25

28.7

0.98

93.8

7.5

3.0

2.3

134

XYT180M-2

22

30

34.2

0.98

94.4

7.5

3.0

2.2

169

XYT200L1-2

30

40

46.6

0.98

94.5

7.5

3.0

2.2

220

XYT200L2-2

37

50

57.4

0.98

94,8

7.5

3.0

2.2

239

XYT225M-2

45

60

69.9

0.98

95.1

7.5

3.0

2.2

297

XYT250M-2

55

75

85.4

0.98

95.4

7.5

3.0

2.2

377

XYT280S-2

75

100

116.4

0.98

95.6

7.5

3.0

2.2

510

XYT280M-2

90

120

139.7

0.98

95.8

7.5

3.0

2.2

540

XYT315S-2

110

150

170.7

0.98

96.0

7.1

2.9

2.2

920

XYT315M-2

132

180

204.9

0.98

96.0

7.1

2.9

2.2

970

XYT315L1-2

160

215

248.4

0.98

96.2

7.1

2.9

2.2

1000

XYT315L2-2

200

270

310.4

0.98

96.3

7.1

2.9

2.2

1170

XYT355M-2

250

335

388.1

0.98

96.4

7.1

2.9

2.2

1690

XYT355L-2

315

420

488.9

0.98

96.5

7.1

2.9

2.2

1850



Description:

It is well known that motors exchanges electrical to mechanical energy based on the magnetic field. Under the same loading conditions, compared with asynchronous motors, permanent magnet synchronous motors have less stator current and stator copper losses.

Thanks to the synchronous speed operation, rare earth permanent magnet synchronic motors(REPMSM) do not have slip between stator and rotor, also do not have copper losses and iron losses during stable operation, so the motors can have smaller fan and less ventilation losses.

XYT 2 pole series motors do not have reactive excitation current, so its power factor can be significantly enhanced to the limiting value1.0. In summary, compared with asynchronous motors, they have less losses and high efficiency (more than 4%~8%) , Especially running during 20%~120% rated load, they can keep high efficiency and power factor, the energy saving can be more obvious during light load.

Relying on so many years of practice, we develop XYT 2 pole series motor applied to pump, fan, compressor, textile machinery, metallurgy, petroleum, chemical and so on.



Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
