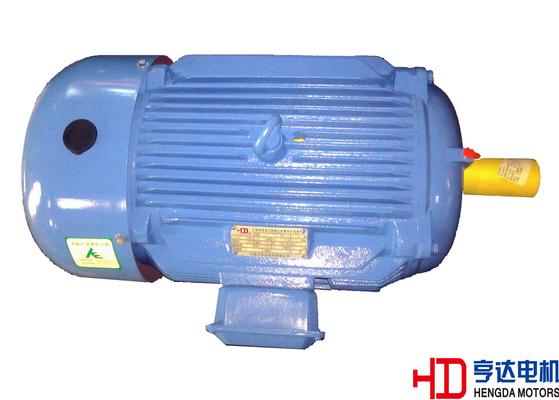

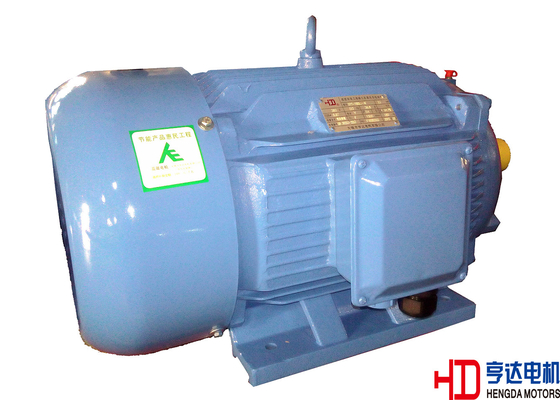

Industrial DC Permanent Magnet Synchronous Induction Motor 380v 50hz For Textile Industry

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Industrial DC Permanent Magnet Synchronous Induction Motor 380v 50hz For Textile Industry Get Best Price

Product Details:
Place of Origin: China
Brand Name: HD
Certification: CCC/ISO9001
Model Number: XYT-4pole
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Overseas package, wooden cases
Delivery Time: 15 working days after order
Payment Terms: T/T or L/C
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Standard: IEC /DIN Efficiency Level: IE4
Frame Size: H180 Cast Iron Frame Pole: 4
High Light:

permanent magnet dc motor

,

three phase synchronous motor

Industrial DC Permanent Magnet Synchronous Induction Motor 380v 50hz For Textile Industry





XYT 180  Super-High efficiency rare earth permanent magnet synchronic motors in textile Industry

Standard Feature:

Phase

Three-phase

Protect Feature

Totally Enclosed

Output Range

15~30KW

Voltage

380V

Frequency

50HZ

Protection Class

IP54

Insulation

F/B

Mounting

IMB3

Cooling

IC411

Special motors can be designed according to customers' requirements



Technical Specification (4 pole/1500r/min  380V/50HZ)

Industrial DC Permanent Magnet Synchronous Induction Motor 380v 50hz For Textile Industry 0

Frame Size Mounting Dimensions (mm) 　
A B C D E F G H AB AD BB L
180M 279 241 121 48 110 14 42.5 180 355 280 315 675
180L 279 279 121 48 110 14 42.5 180 355 280 355 723

Tag:

permanent magnet dc motor,

three phase synchronous motor,

permanent magnet induction motor
