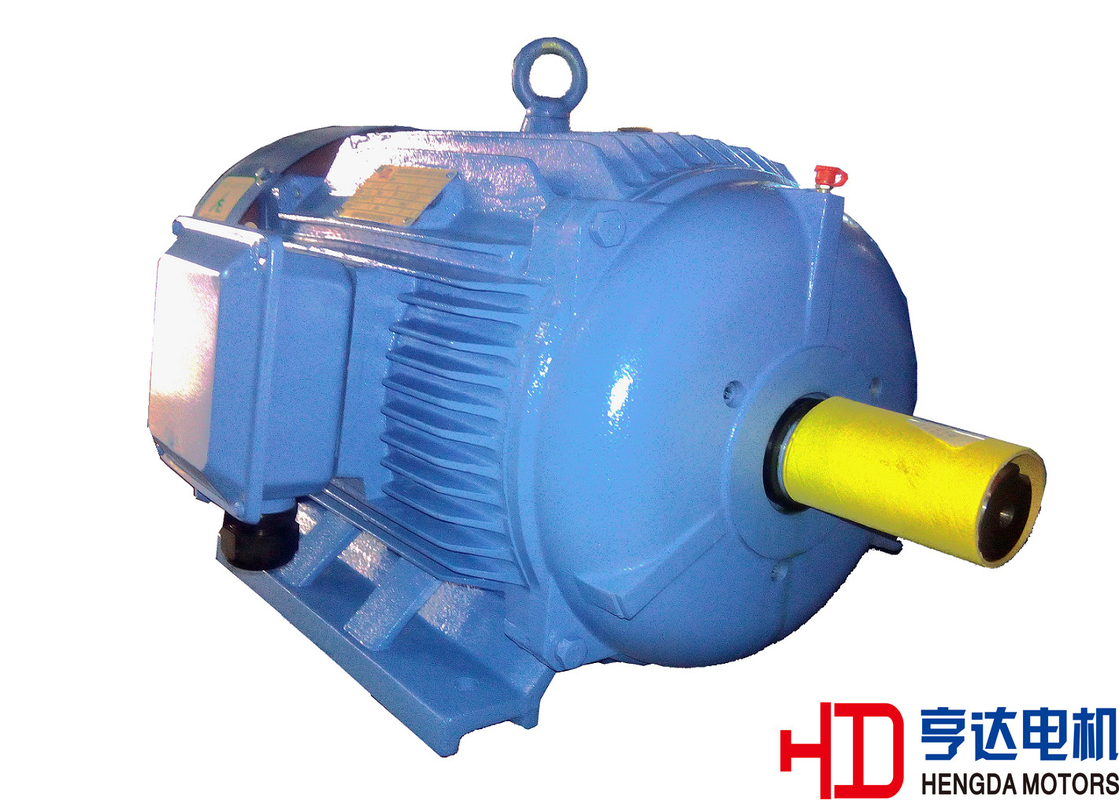

Waterproof IE4 4 Pole Permanent Magnet Synchronous Motor 45KW , High Performance

Large Image : Waterproof IE4 4 Pole Permanent Magnet Synchronous Motor 45KW , High Performance Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	CCC/ISO9001
Model Number:	XYT-4pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation

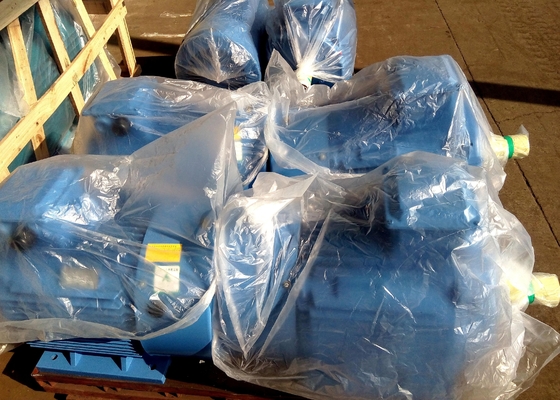

Packaging Details:	Overseas package, wooden cases
Delivery Time:	15 working days after order
Payment Terms:	T/T or L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Standard:

IEC /DIN

Efficiency Level:

IE4

Frame Size:

H225 Cast Iron Frame

Pole:

High Light:

permanent magnet dc motor

three phase synchronous motor

Waterproof IE4 4 Pole Permanent Magnet Synchronous Motor 45KW , High Performance

XYT 225 4 pole Super-High efficiency rare earth permanent magnet synchronic motors in textile Industry

Standard Feature:
Phase	Three-phase
Protect Feature	Totally Enclosed
Output Range	37~45KW
Voltage	380V
Frequency	50HZ
Protection Class	IP54
Insulation	F/B
Mounting	IMB3
Cooling	IC411
Special motors can be designed according to customers' requirements

Technical Specification (4 pole/1500r/min 380V/50HZ)

Waterproof IE4 4 Pole Permanent Magnet Synchronous Motor 45KW , High Performance 0

Frame Size	Mounting Dimensions (mm)
Frame Size	A	B	C	D	E	F	G	H	AB	AD	BB	L
180M	279	241	121	48	110	14	42.5	180	355	280	315	675
180L	279	279	121	48	110	14	42.5	180	355	280	355	723
225S	356	286	149	60	140	18	53	225	435	335	375	815
225M	356	311	149	60	140	18	53	225	435	335	400	845
