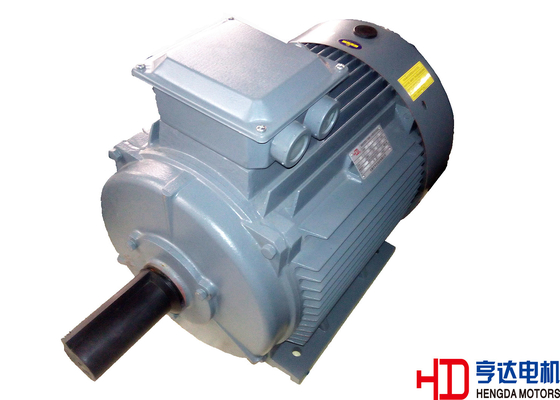

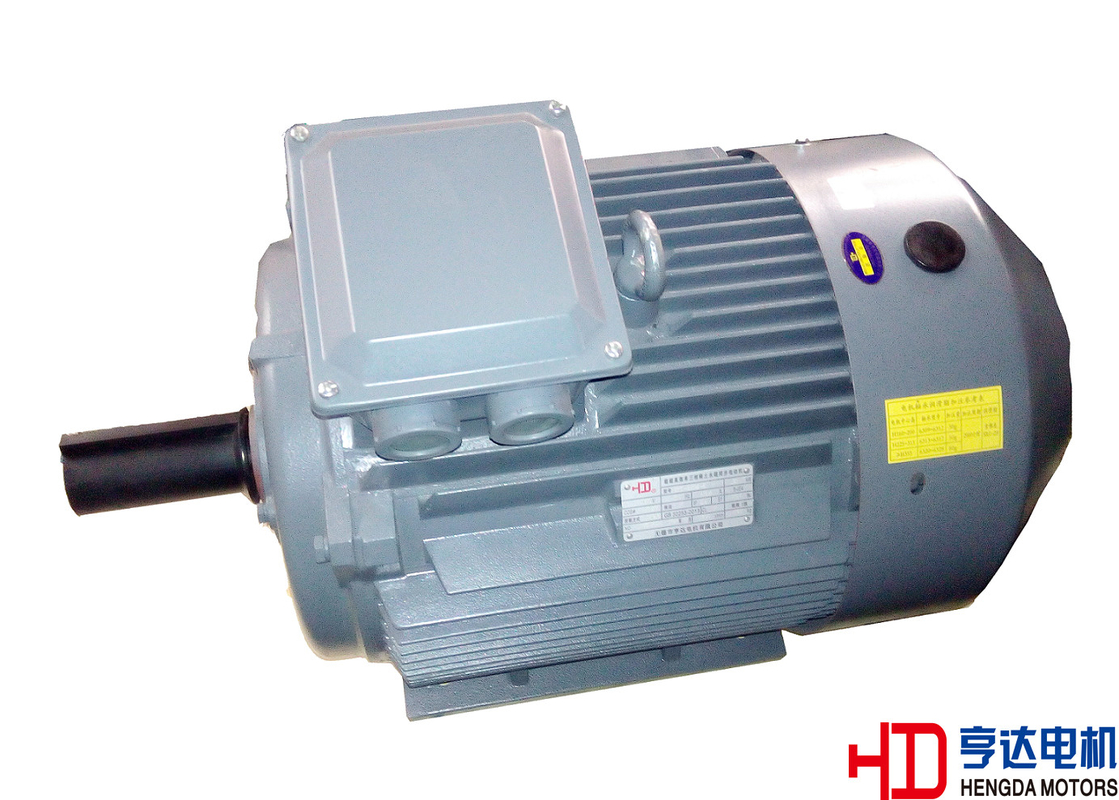

IE4 Industrial 6 Pole Permanent Magnet Synchronous Motor , Totally Enclosed

IE4 Industrial 6 Pole Permanent Magnet Synchronous Motor , Totally Enclosed

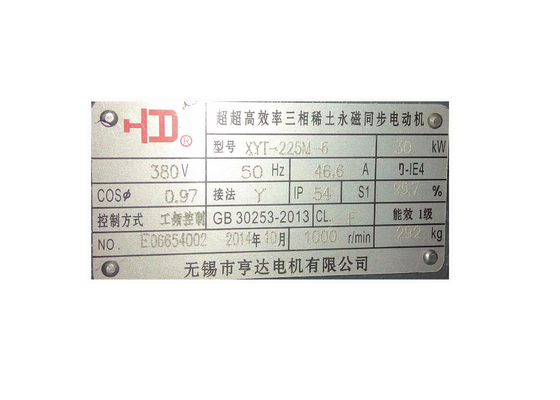

Meaning of type code

According to IEC60034, the motors are designed can withstand 1.5times rated voltage and rated current for 2 minutes.

Pull-out torque

Pull-out torque is an important index to reflect REPMSM overload capacity. Pull-out torque of XYT series is in the range of 2.0~2.5 which ensure good overload capacity.

Under the condition of hot state and torque increasing, REPMSM can withstand specified Pull-out torque values(tolerance) for 15s.At this point , the voltage and frequency should be maintained in the rated value.

Coupling and Driving

XYT series motor is coupling with load through coupler or belt which is outside the scope of a motor manufacturer’s supply.

XYT series motor has single shaft ,we can produce double shaft if need. The second one can deliver rated power, but only can be drived by coupling.

Technical Specification (6 pole/1000r/min  380V/50HZ )

Description:

It is well known that motors exchanges electrical to mechanical energy based on the magnetic field. Under the same loading conditions, compared with asynchronous motors, permanent magnet synchronous motors have less stator current and stator copper losses.

Thanks to the synchronous speed operation, rare earth permanent magnet synchronic motors(REPMSM) do not have slip between stator and rotor, also do not have copper losses and iron losses during stable operation, so the motors can have smaller fan and less ventilation losses.

REPMSM do not have reactive excitation current, so its power factor can be significantly enhanced to the limiting value1.0. In summary, compared with asynchronous motors, REPMSM have less losses and high efficiency (more than 4%~8%) , Especially running during 20%~120% rated load, REPMSM can keep high efficiency and power factor, the energy saving can be more obvious during light load.

Relying on so many years of practice, we develop XYT series motor applied to pump, fan, compressor, textile machinery, metallurgy, petroleum, chemical and so on.

The following as options or customer’s request:

  Protection class IP56

  Space heater

  Heat protector

  Vibration detector

  Special mounting dimension and shaft dimension

  Low vibration and low noise

  Bearing thermometer PT100(frame size H180 and above)

  Winding thermometer PT100

  PTC/PTO

  Special painting

  Special voltage and frequency

  Aluminium frame

  Others

Applications:

They can be widely used for driving various common machines and equipments such as compressors,fans,water pumps, textile and crushers. Furthermore they can function as prime motor in relatively severe conditions including petroleum,chemical,pharmaceutical and mining industries.
