Lightweight Low Rpm Permanent Magnet Synchronous Motor High Speed Electric Motor

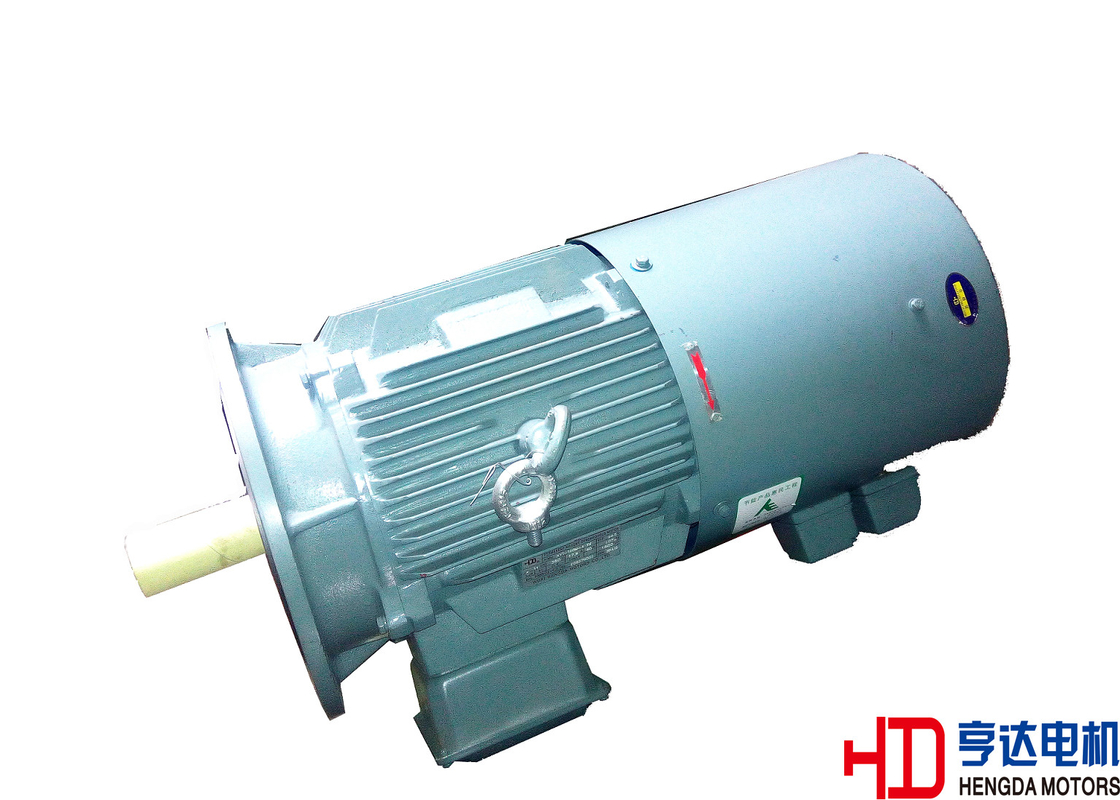

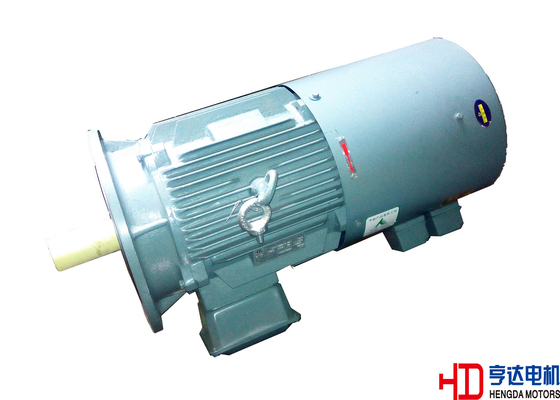

Large Image : Lightweight Low Rpm Permanent Magnet Synchronous Motor High Speed Electric Motor Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	ISO9001
Model Number:	XYT V1

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

IE4

Phase:

Three-phase

Output Range:

0.75~315KW

Mounting:

High Light:

three phase synchronous motor

permanent magnet induction motor

Lightweight Low Rpm Permanent Magnet Synchronous Motor High Speed Electric Motor

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%

Standard Feature:
Standard	IEC /DIN
Frame Size	H80~355 cast iron frame
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Pole	2,4,6
Protection Class	IP55
Insulation	F/B
Duty	S1
Thermometry	Optional
Special motors can be designed according to customers' requirements

Lightweight Low Rpm Permanent Magnet Synchronous Motor High Speed Electric Motor 0

Frame Size	Pole	Mounting Dimensions (mm)										Overall Dimensions (mm)
Frame Size	Pole	D	E	F	G	M	N	P	R	S	T	AC	AD	HF	L
180M	2,4,6,8	48	110	14	42.5	300	250	350	0	4-￠18.5	5	380	310	500	800
180L	2,4,6,8	48	110	14	42.5	300	250	350	0	4-￠18.5	5	380	310	500	800
200L	2,4,6,8	55	110	16	49	350	300	400	0	4-￠18.5	5	410	335	540	845
225S	4.8	60	140	18	53	400	350	450	0	8-￠18.5	5	470	370	605	905
225M	2	55	110	16	49	400	350	450	0	8-￠18.5	5	470	370	605	910
225M	4,6,8	60	140	18	53	400	350	450	0	8-￠18.5	5	470	370	605	940
250M	2	60	140	18	53	500	450	550	0	8-￠18.5	5	490	380	630	1035
250M	4,6,8	65	140	18	58	500	450	550	0	8-￠18.5	5	490	380	630	1035
280S	2	65	140	18	58	500	450	550	0	8-￠18.5	5	580	410	700	1115
280S	4,6,8	75	140	20	67.5	500	450	550	0	8-￠18.5	5	580	410	700	1115
280M	2	65	140	18	58	500	450	550	0	8-￠18.5	5	580	410	700	1115
280M	4,6,8	75	140	20	67.5	500	450	550	0	8-￠18.5	5	580	410	700	1115
315S	2	65	140	18	58	600	550	660	0	8-￠24	6	645	535	858	1310
315S	4,6,8,10	80	170	22	71	600	550	660	0	8-￠24	6	645	535	858	1340
315M	2	65	140	18	58	600	550	660	0	8-￠24	6	645	535	858	1425
315M	4,6,8,10	80	170	22	71	600	550	660	0	8-￠24	6	645	535	858	1450
315L	2	65	140	18	58	600	550	660	0	8-￠24	6	645	535	858	1425
315L	4,6,8,10	80	170	22	71	600	550	660	0	8-￠24	6	645	535	858	1450
355M	2	75	140	20	67.5	740	680	800	0	8-￠24	6	720	650	1010	1640
355M	4,6,8,10	95	170	25	86	740	680	800	0	8-￠24	6	720	650	1010	1670
355L	2	75	140	20	67.5	740	680	800	0	8-￠24	6	720	650	1010	1640
355L	4,6,8,10	95	170	25	86	740	680	800	0	8-￠24	6	720	650	1010	1670
