Energy Efficient Permanent Magnetic Synchronous Electric Motor Speed Control

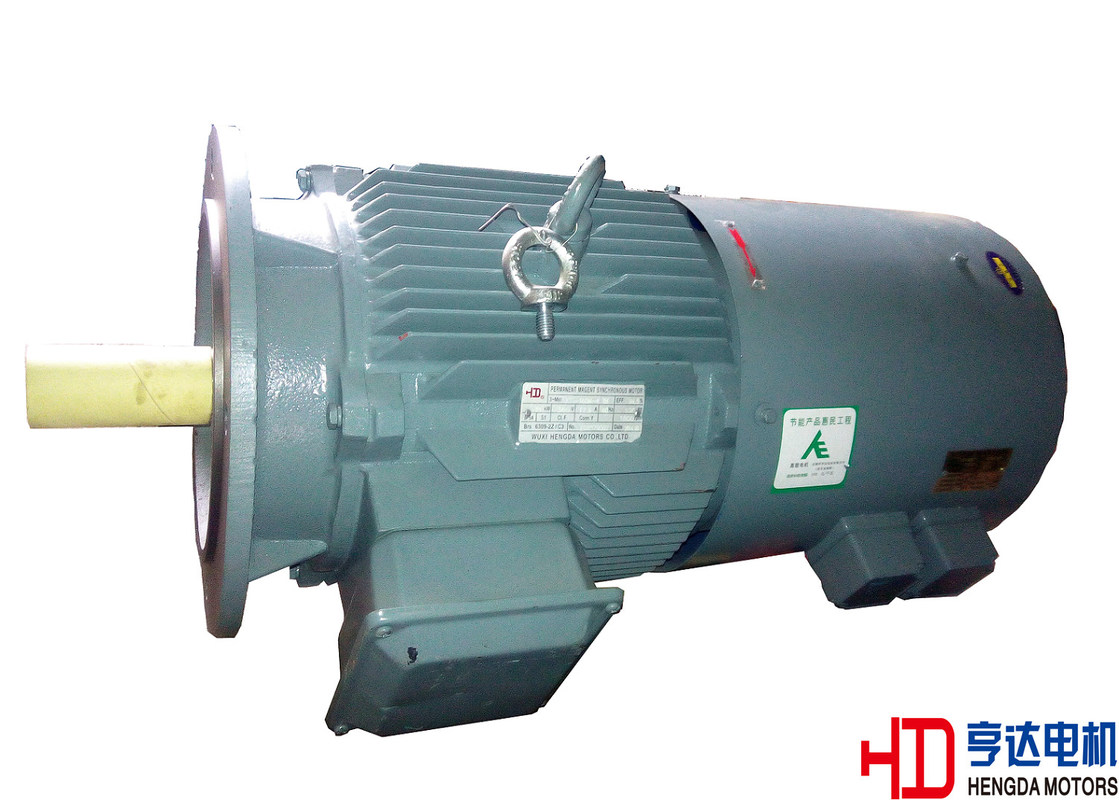

Large Image : Energy Efficient Permanent Magnetic Synchronous Electric Motor Speed Control Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	HD
Certification:	ISO9001
Model Number:	XYT B5

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Overseas package, wooden cases
Delivery Time:	20 working days after order
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Efficiency Level:

IE4

Phase:

Three-phase

Output Range:

0.75~90KW

Mounting:

High Light:

permanent magnet dc motor

permanent magnet induction motor

Energy Efficient Permanent Magnetic Synchronous Electric Motor Speed Control

Ambient
Temperature range:	-15~40℃
Ambient humidity:	90%less than relative humidity
Altitude:	less than 1000m above sea level
Ambient condition:	no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization
Supply power:
Voltage variable	±5%
frequency variable	±2% Combine voltage and frequency variable : ±5%

Standard Feature:
Standard	IEC /DIN
Frame Size	H80~280 cast iron frame
Protect Feature	Totally Enclosed
Voltage	380V
Frequency	50HZ
Pole	2,4,6
Protection Class	IP55
Insulation	F/B
Duty	S1
Thermometry	Optional
Special motors can be designed according to customers' requirements

Mounting Type:IMB5 /IM3001: without feet , but with flange on the DE side.

IM B5 Mounting and overall dimensions(mm)

Frame Size	Pole	Mounting Dimensions (mm)										Overall Dimensions (mm)
Frame Size	Pole	D	E	F	G	M	N	P	S	T	R	AC	AD	LD	LA	L
80M	2,4,6,8	19	40	6	15.5	165	130	200	4-￠12	3.5	0	167	165	74	12	300
90S	2,4,6,8	24	50	8	20	165	130	200	4-￠12	3.5	0	190	175	76	12	350
90L	2,4,6,8	24	50	8	20	165	130	200	4-￠12	3.5	0	190	175	76	12	385
100L	2,4,6,8	28	60	8	24	215	180	250	4-￠14.5	4	0	215	200	83	13	435
112M	2,4,6,8	28	60	8	24	215	180	250	4-￠14.5	4	0	240	220	87	14	470
132S	2,4,6,8	38	80	10	33	265	230	300	4-￠14.5	4	0	275	240	102	14	510
132M	2,4,6,8	38	80	10	33	265	230	300	4-￠14.5	4	0	275	240	102	14	560
160M	2,4,6,8	42	110	12	37	300	250	350	4-￠18.5	5	0	320	285	149	15	670
160L	2,4,6,8	42	110	12	37	300	250	350	4-￠18.5	5	0	320	285	149	15	700
180M	2,4,6,8	48	110	14	42.5	300	250	350	4-￠18.5	5	0	380	310	161	15	740
180L	2,4,6,8	48	110	14	42.5	300	250	350	4-￠18.5	5	0	380	310	161	15	780
200L	2,4,6,8	55	110	16	49	350	300	400	4-￠18.5	5	0	410	335	186	17	780
225S	4.8	60	140	18	53	400	350	450	8-￠18.5	5	0	470	370	189	20	820
225M	2	55	110	16	49	400	350	450	8-￠18.5	5	0	470	370	189	20	815
225M	4,6,8	60	140	18	53	400	350	450	8-￠18.5	5	0	470	370	189	20	845
250M	2	60	140	18	53	500	450	550	8-￠18.5	5	0	490	380	207	22	915
250M	4,6,8	65	140	18	58	500	450	550	8-￠18.5	5	0	490	380	207	22	915
280S	2	65	140	18	58	500	450	550	8-￠18.5	5	0	580	410	215	22	985
280S	4,6,8	75	140	20	67.5	500	450	550	8-￠18.5	5	0	580	410	215	22	985
280M	2	65	140	18	58	500	450	550	8-￠18.5	5	0	580	410	215	22	1035
280M	4,6,8	75	140	20	67.5	500	450	550	8-￠18.5	5	0	580	410	215	22	1035
